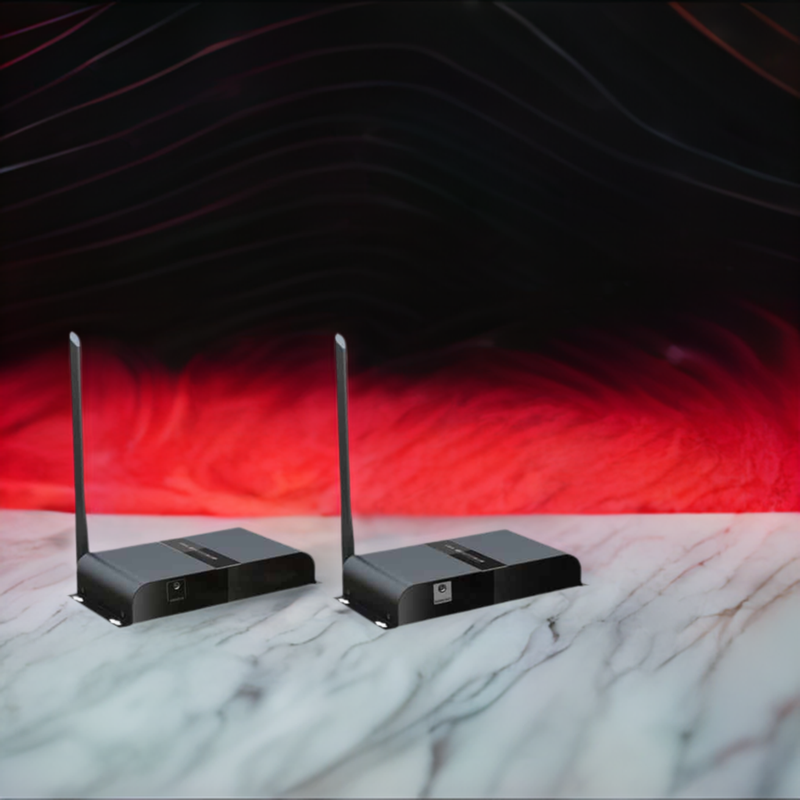

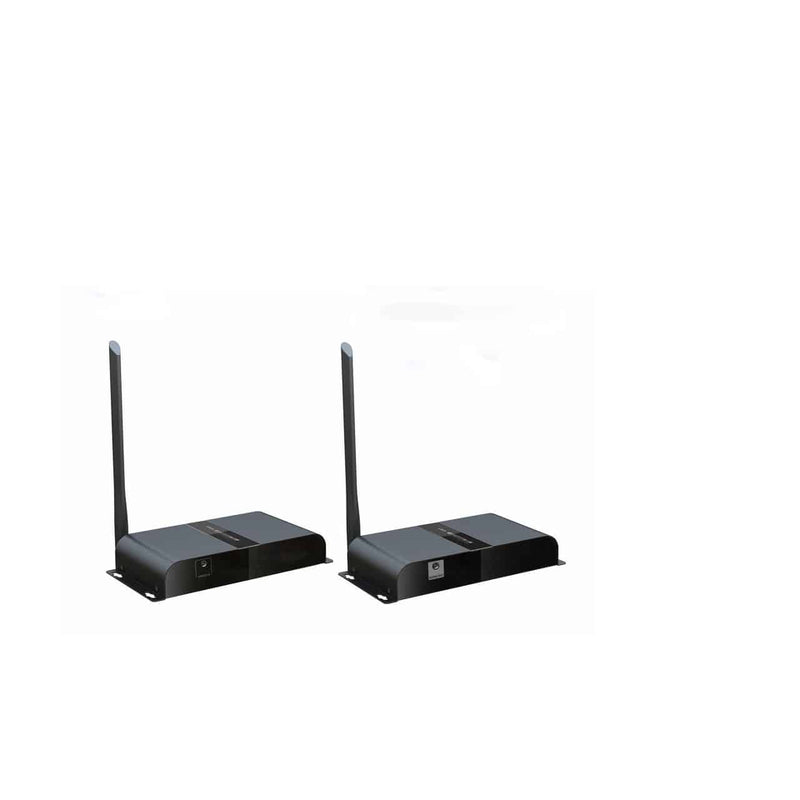

4XEM Long range 200M wireless VGA extender. AV VGA transmitter and receiver kit functions up to 656FT/200M. It extends video to any display with VGA.
Features:
- wirelessly transmits the VGA signal up to 656FT/200M
- supports resolutions up to 1920x1080@60Hz
- uses advanced HDbitT wireless transmission technology
- has 3.5mm audio jack
- penetrates most walls
- easy and quick installation
Specifications:
| Warranty Information | Warranty | 1 Year |
| Connector(s) | Transmit Unit Connectors | VGA (DB-15) Input |
| 3.5mm 3-Pole TRS Mini-Jack (Audio in) | ||
| Antenna Connector | ||
| DC input | ||
| Receiver Unit Connectors | VGA (DB-15) Output | |
| 3.5mm 3-Pole TRS Mini-Jack (Audio out) | ||
| Antenna Connector | ||
| DC input | ||
| Indicators | LED Indicators | Power |
| Signal | ||
| Physical Characteristics | Color | Black |
| Material | Metal | |
| Product Height | 1.31 in [33.4 mm] (with antenna in upright position - 8.19 in [208 mm]) | |
| Product Width | 6.79 in [172.5 mm] (incl side mounts - 7.68 in [195 mm]) | |
| Product Length | 3.78 in [96 mm] (with antenna in upright position - 5.30 in [134.6 mm]) | |
| Weight of Transmitter | 1.20 lbs [544 g] (with antenna - 1.27 lbs [570 g]) | |
| Weight of Receiver | 1.17 lbs [530 g] (with antenna - 1.23 lbs [556 g]) | |
| Antenna OD | 0.51 in [13 mm] | |
| Antenna Length | 8.86 in [225 mm] | |
| Performance | Max Distance | 656 ft [200 m] |
| Transport Protocol | HDbitT | |
| VGA Signal | RGBHV | |
| Supported Resolutions | 1920x1080@60Hz; 1680x1050@60Hz; 1440x900@60Hz; | |
| 1360x768@60Hz; 1280x1024@60Hz; 1280x960@60Hz; | ||
| 1280x720@60Hz; 1024x768@60Hz; 800x600@60Hz | ||
| Power | Power Source | AC/DC Adaptor |
| Input Voltage | 5V DC | |
| Input Current | 3A | |
| Tx Power Consumption | 9W | |
| Rx Power Consumption | 6.5W | |
| Environmental | Operating Temperature | 0°C~60°C |
| Packaging Information | Shipping (Package) Weight | 3.67 lbs. [1.7 kg] |
| Package Height | 3.15 in [80 mm] | |
| Package Width | 240 mm | |
| Package Length | 178 mm | |
| What's in the Box | Included in Package | 1x VGA Wireless Transmitter |
| 1x VGA Wireless Receiver | ||
| 2x 5V DC/3A Power Adaptors | ||
| 2x Antennas | ||
| 2x 1.4m 3.5mm audio cables |
Selected page contains no content. Add content to this page in the page editor.
Product Overview
4XEM Long range 200M wireless VGA extender. AV VGA transmitter and receiver kit functions up to 656FT/200M. It extends video to any display with VGA.
Features:
- wirelessly transmits the VGA signal up to 656FT/200M
- supports resolutions up to 1920x1080@60Hz
- uses advanced HDbitT wireless transmission technology
- has 3.5mm audio jack
- penetrates most walls
- easy and quick installation
Specifications:
| Warranty Information | Warranty | 1 Year |
| Connector(s) | Transmit Unit Connectors | VGA (DB-15) Input |
| 3.5mm 3-Pole TRS Mini-Jack (Audio in) | ||
| Antenna Connector | ||
| DC input | ||
| Receiver Unit Connectors | VGA (DB-15) Output | |
| 3.5mm 3-Pole TRS Mini-Jack (Audio out) | ||
| Antenna Connector | ||
| DC input | ||
| Indicators | LED Indicators | Power |
| Signal | ||
| Physical Characteristics | Color | Black |
| Material | Metal | |
| Product Height | 1.31 in [33.4 mm] (with antenna in upright position - 8.19 in [208 mm]) | |
| Product Width | 6.79 in [172.5 mm] (incl side mounts - 7.68 in [195 mm]) | |
| Product Length | 3.78 in [96 mm] (with antenna in upright position - 5.30 in [134.6 mm]) | |
| Weight of Transmitter | 1.20 lbs [544 g] (with antenna - 1.27 lbs [570 g]) | |
| Weight of Receiver | 1.17 lbs [530 g] (with antenna - 1.23 lbs [556 g]) | |
| Antenna OD | 0.51 in [13 mm] | |
| Antenna Length | 8.86 in [225 mm] | |
| Performance | Max Distance | 656 ft [200 m] |
| Transport Protocol | HDbitT | |
| VGA Signal | RGBHV | |
| Supported Resolutions | 1920x1080@60Hz; 1680x1050@60Hz; 1440x900@60Hz; | |
| 1360x768@60Hz; 1280x1024@60Hz; 1280x960@60Hz; | ||
| 1280x720@60Hz; 1024x768@60Hz; 800x600@60Hz | ||
| Power | Power Source | AC/DC Adaptor |
| Input Voltage | 5V DC | |
| Input Current | 3A | |
| Tx Power Consumption | 9W | |
| Rx Power Consumption | 6.5W | |
| Environmental | Operating Temperature | 0°C~60°C |
| Packaging Information | Shipping (Package) Weight | 3.67 lbs. [1.7 kg] |
| Package Height | 3.15 in [80 mm] | |
| Package Width | 240 mm | |
| Package Length | 178 mm | |
| What's in the Box | Included in Package | 1x VGA Wireless Transmitter |
| 1x VGA Wireless Receiver | ||
| 2x 5V DC/3A Power Adaptors | ||
| 2x Antennas | ||
| 2x 1.4m 3.5mm audio cables |
