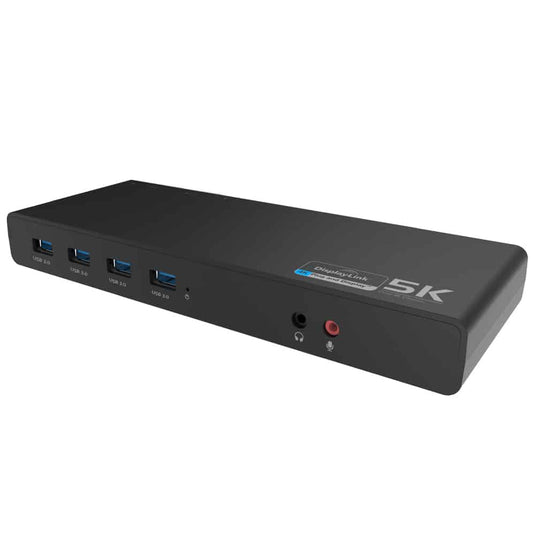

4XEM USB-C 4K Ultra HD Multi-Display Universal Docking Station
Introducing the professional grade USB-C 4K Ultra HD Multi-Display Universal Docking Station, the ultimate solution for expanding your workstation and increasing productivity. With this dock, you can connect to two high resolution 4K displays with the two DisplayPort 1.2 ports and two HDMI 2.0 ports, giving you the ability to multitask and work with multiple applications at once.
The dock also features six USB 3.0 Type-A ports, providing ample connectivity options for all your peripherals such as keyboard, mouse, and external hard drives. Additionally, the dock has an RJ-45 Gigabit port, allowing for a wired internet connection for stable and fast internet access.
The dock also has a 3-pole microphone audio in jack and a 3-pole speaker or headphone audio jack, providing audio in and out support for your work or entertainment.
Upgrade your workspace and take your productivity to the next level with the USB-C 4K Ultra HD Multi-Display Universal Docking Station. Order yours today!
Features:
- USB 3.1 Gen1 Type-C and Standard-A connectors compatible both Type-C and Type-A Laptop
- Build in USB 3.0 GPU, Plug and Display Certified by DisplayLink
- Two display output (2x HDMI), each display output support HDMI or DisplayPort, resolution up to (4K)4096 x 2160p6
- 2x DP++ ports, Support resolution 5K)5120 x 2880p60 when only using one DP++ port
- Support Extend and Mirror Video Mode. 5.1 Channel surround-sound through Display Port interface
- Gigabit Ethernet network RJ-45 backward 10/100 Ethernet
- 2.0 Audio Line-out Jack for Earphone and Line-In Jack Microphone
- 6 x USB 3.0 ports compatible with all USB 3.0 and USB 2.0 devices
Benefits:
- 4K Ultra HD Multi-Display support: The USB-C 4K Ultra HD Multi-Display Universal Docking Station supports resolutions of up to 4K on two displays, allowing for seamless multitasking and improved productivity.
- DisplayPort 1.2 and HDMI 2.0 ports: The dock has two DisplayPort 1.2 ports and two HDMI 2.0 ports, allowing for the connection of multiple displays with high resolution and refresh rate.
- USB 3.0 Type-A ports: The dock has six USB 3.0 Type-A ports, providing ample connectivity options for peripherals such as keyboards, mice, and external hard drives.
- RJ-45 Gigabit port: The dock has an RJ-45 Gigabit port, allowing for a wired internet connection for stable and fast internet access.
- Audio in and out support: The dock has a 3 pole microphone audio in jack and a 3 pole speaker or headphone audio jack, providing audio in and out support for your work or entertainment.
- USB-C compatibility: The dock is compatible with USB-C devices, allowing for easy and fast connection.
Specifications:
| Warranty Information | Warranty | 2 Years |
| Features/Hardware | 4K Support | Yes |
| Displays Supported | 2 | |
| USB Ports | 6 | |
| Fast-Charge Port(s) | No | |
| Network | Yes | |
| SD Card Reader | No | |
| Audio | Yes | |
| Power Delivery | No | |
| Lock Slot | Yes | |
| Industry Standards | DisplayPort++ 1.2 | |
| HDMI 2.0 | ||
| HDCP 1.4 | ||
| Chipset ID | DisplayLink - DL6950 | |
| VIA - VL813 | ||

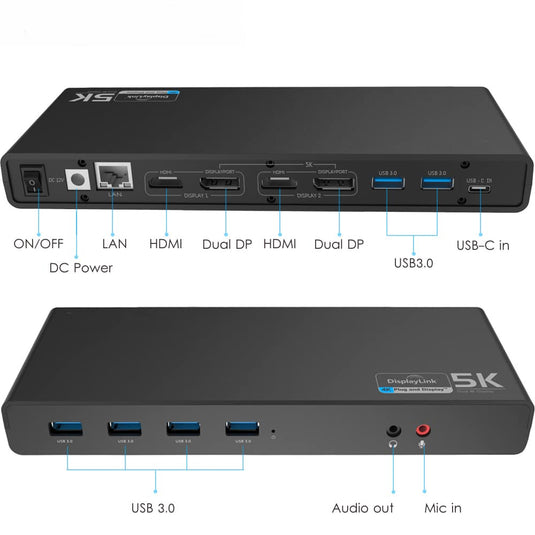

| Connector(s) | Host Connector | USB 3.1 Gen 1 Type-C (5Gbps) |
| Host Connector Cable | Detachable | |
| Connector Type(s)/Rate(s) | 2x DisplayPort++ 1.2 (HBR2: 5.40Gbps x4) | |
| 2x HDMI 2.0 (18Gbps) | ||
| 6x USB 3.0 Type-A (5Gbps) | ||
| 1x RJ-45 (10/100/1000Mbps) | ||
| 1x 3-Pole TRS Phono Jack (Audio In - Microphone) | ||
| 1x 3-Pole TRS Phono Jack (Audio Out - Speakers/Headphones) | ||
| Performance | Maximum Digital Resolutions | Single Monitor: 5K (5120 x 2880 @60Hz) |
| Dual Monitors: 4K UHD (3840 x 2160 @ 60Hz) Each | ||
| Audio Specification | Up to 5.1-ch surround via DisplayPort/HDMI | |
| 2-ch Stereo via TRS | ||
| Software | OS Compatibility | Windows 7 or higher |
| Mac OS 10.10.5 or later | ||
| Power | Power Source | AC Adaptor Included (100-240VAC, 50/60Hz, 0.2A Max, CLASSⅡ) |
| Power Adaptor Style | Wall Wart | |
| Power Consumption | 40W | |
| Input Voltage | 20V DC | |
| Input Current | 2A | |
| Output Voltage | N/A | |
| Output Current | N/A | |
| Power Delivery | N/A | |
| Physical Characteristics | Color | Black |
| Shell Material | ABS Plastic | |
| Buttons/Switches | Power On/Off Switch | |
| LED Indicators | Power: Blue | |
| Host Cable Length | C-C Cable: 3.0 ft [0.91 m] | |
| C-A Cable: 3.0 ft [0.91 m] | ||
| Power Cable Length | AC In: N/A | |
| DC Out: 3.83 ft [1.17 m] | ||
| Product Height | 1.10 in [28.0 mm] | |
| Product Width | 8.78 in [223 mm] | |
| Product Length | 3.31 in [84.0 mm] | |
| Weight of Product | 11.92 oz [338 g] | |
| Environmental | Operating Temperature | 32 °F to 104 °F [0 °C to 40 °C] @ 10%-90% RH (Non-Condnesing) |
| Storage Temperature | 14 °F to 158 °F [-10 °C to 70 °C] @ 10%-90% RH (Non-Condnesing) | |
| Packaging Information | Package Type | Box |
| Package Height | 6.06 in [154 mm] | |
| Package Width | 12.48 in [317 mm] | |
| Package Length | 2.48 in [63 mm] | |
| Shipping (Package) Weight | 1.87 lbs [848 g] | |
| What's in the Box | Included in Package | 1x USB-C Universal Docking station |
| 1x USB 3.0 C to C Cable | ||
| 1x USB 3.0 A to C Cable | ||
| 1x User Manual | ||
| 1x Software Installation CD | ||
| 1x DC20V Power Adapter | ||
| Notes | Single 5K monitor requires both DP ports. HDCP not supported on Mac OS. This device only supports 2 connected displays. If both video output ports are occupied of the same display head, DisplayPort will be given priority. Audio output is not dynamically selectable and is given the following priority: 1) 3.5 mm Phono Jack - 2) Display Head 1 - 3) Display Head 2 |
|
| * Product appearance and specifications are subject to change without notice. | ||
| * Weights and measurements are approximate. | ||
Product Overview
4XEM USB-C 4K Ultra HD Multi-Display Universal Docking Station
Introducing the professional grade USB-C 4K Ultra HD Multi-Display Universal Docking Station, the ultimate solution for expanding your workstation and increasing productivity. With this dock, you can connect to two high resolution 4K displays with the two DisplayPort 1.2 ports and two HDMI 2.0 ports, giving you the ability to multitask and work with multiple applications at once.
The dock also features six USB 3.0 Type-A ports, providing ample connectivity options for all your peripherals such as keyboard, mouse, and external hard drives. Additionally, the dock has an RJ-45 Gigabit port, allowing for a wired internet connection for stable and fast internet access.
The dock also has a 3-pole microphone audio in jack and a 3-pole speaker or headphone audio jack, providing audio in and out support for your work or entertainment.
Upgrade your workspace and take your productivity to the next level with the USB-C 4K Ultra HD Multi-Display Universal Docking Station. Order yours today!
Features:
- USB 3.1 Gen1 Type-C and Standard-A connectors compatible both Type-C and Type-A Laptop
- Build in USB 3.0 GPU, Plug and Display Certified by DisplayLink
- Two display output (2x HDMI), each display output support HDMI or DisplayPort, resolution up to (4K)4096 x 2160p6
- 2x DP++ ports, Support resolution 5K)5120 x 2880p60 when only using one DP++ port
- Support Extend and Mirror Video Mode. 5.1 Channel surround-sound through Display Port interface
- Gigabit Ethernet network RJ-45 backward 10/100 Ethernet
- 2.0 Audio Line-out Jack for Earphone and Line-In Jack Microphone
- 6 x USB 3.0 ports compatible with all USB 3.0 and USB 2.0 devices
Benefits:
- 4K Ultra HD Multi-Display support: The USB-C 4K Ultra HD Multi-Display Universal Docking Station supports resolutions of up to 4K on two displays, allowing for seamless multitasking and improved productivity.
- DisplayPort 1.2 and HDMI 2.0 ports: The dock has two DisplayPort 1.2 ports and two HDMI 2.0 ports, allowing for the connection of multiple displays with high resolution and refresh rate.
- USB 3.0 Type-A ports: The dock has six USB 3.0 Type-A ports, providing ample connectivity options for peripherals such as keyboards, mice, and external hard drives.
- RJ-45 Gigabit port: The dock has an RJ-45 Gigabit port, allowing for a wired internet connection for stable and fast internet access.
- Audio in and out support: The dock has a 3 pole microphone audio in jack and a 3 pole speaker or headphone audio jack, providing audio in and out support for your work or entertainment.
- USB-C compatibility: The dock is compatible with USB-C devices, allowing for easy and fast connection.
Specifications:
| Warranty Information | Warranty | 2 Years |
| Features/Hardware | 4K Support | Yes |
| Displays Supported | 2 | |
| USB Ports | 6 | |
| Fast-Charge Port(s) | No | |
| Network | Yes | |
| SD Card Reader | No | |
| Audio | Yes | |
| Power Delivery | No | |
| Lock Slot | Yes | |
| Industry Standards | DisplayPort++ 1.2 | |
| HDMI 2.0 | ||
| HDCP 1.4 | ||
| Chipset ID | DisplayLink - DL6950 | |
| VIA - VL813 | ||
| Connector(s) | Host Connector | USB 3.1 Gen 1 Type-C (5Gbps) |
| Host Connector Cable | Detachable | |
| Connector Type(s)/Rate(s) | 2x DisplayPort++ 1.2 (HBR2: 5.40Gbps x4) | |
| 2x HDMI 2.0 (18Gbps) | ||
| 6x USB 3.0 Type-A (5Gbps) | ||
| 1x RJ-45 (10/100/1000Mbps) | ||
| 1x 3-Pole TRS Phono Jack (Audio In - Microphone) | ||
| 1x 3-Pole TRS Phono Jack (Audio Out - Speakers/Headphones) | ||
| Performance | Maximum Digital Resolutions | Single Monitor: 5K (5120 x 2880 @60Hz) |
| Dual Monitors: 4K UHD (3840 x 2160 @ 60Hz) Each | ||
| Audio Specification | Up to 5.1-ch surround via DisplayPort/HDMI | |
| 2-ch Stereo via TRS | ||
| Software | OS Compatibility | Windows 7 or higher |
| Mac OS 10.10.5 or later | ||
| Power | Power Source | AC Adaptor Included (100-240VAC, 50/60Hz, 0.2A Max, CLASSⅡ) |
| Power Adaptor Style | Wall Wart | |
| Power Consumption | 40W | |
| Input Voltage | 20V DC | |
| Input Current | 2A | |
| Output Voltage | N/A | |
| Output Current | N/A | |
| Power Delivery | N/A | |
| Physical Characteristics | Color | Black |
| Shell Material | ABS Plastic | |
| Buttons/Switches | Power On/Off Switch | |
| LED Indicators | Power: Blue | |
| Host Cable Length | C-C Cable: 3.0 ft [0.91 m] | |
| C-A Cable: 3.0 ft [0.91 m] | ||
| Power Cable Length | AC In: N/A | |
| DC Out: 3.83 ft [1.17 m] | ||
| Product Height | 1.10 in [28.0 mm] | |
| Product Width | 8.78 in [223 mm] | |
| Product Length | 3.31 in [84.0 mm] | |
| Weight of Product | 11.92 oz [338 g] | |
| Environmental | Operating Temperature | 32 °F to 104 °F [0 °C to 40 °C] @ 10%-90% RH (Non-Condnesing) |
| Storage Temperature | 14 °F to 158 °F [-10 °C to 70 °C] @ 10%-90% RH (Non-Condnesing) | |
| Packaging Information | Package Type | Box |
| Package Height | 6.06 in [154 mm] | |
| Package Width | 12.48 in [317 mm] | |
| Package Length | 2.48 in [63 mm] | |
| Shipping (Package) Weight | 1.87 lbs [848 g] | |
| What's in the Box | Included in Package | 1x USB-C Universal Docking station |
| 1x USB 3.0 C to C Cable | ||
| 1x USB 3.0 A to C Cable | ||
| 1x User Manual | ||
| 1x Software Installation CD | ||
| 1x DC20V Power Adapter | ||
| Notes | Single 5K monitor requires both DP ports. HDCP not supported on Mac OS. This device only supports 2 connected displays. If both video output ports are occupied of the same display head, DisplayPort will be given priority. Audio output is not dynamically selectable and is given the following priority: 1) 3.5 mm Phono Jack - 2) Display Head 1 - 3) Display Head 2 |
|
| * Product appearance and specifications are subject to change without notice. | ||
| * Weights and measurements are approximate. | ||
