4XEM USB-C 4K Triple Display Docking Station with 65W Power Delivery
Introducing the ultimate productivity tool for your workspace: the USB-C 4K Triple Display Docking Station. With 65W Power Delivery, you'll never have to worry about running out of power while you work. The docking station features 1 HDMI 1.4 port, 1 HDMI 1.2 port, 1 DVI-I SL port, 1 USB 3.0 Fast Charge Type A port, 3 USB-A 3.0 ports, 2 USB 3.0 Type C ports, 1 RJ-45 Gigabit Network port, and 1 4 pole TRRS Phono Jack for audio in and out. Connect multiple displays to increase your productivity and improve your workflow. Stay connected with fast and reliable Gigabit Networking and take advantage of lightning-fast data transfer speeds with USB 3.0. Optimize your audio with the 4 pole TRRS Phono Jack for audio in and out. This Docking Station is perfect for professionals, gamers, and anyone looking to streamline their workflow and increase their productivity.
Problem It Solves: Display up to 3 different monitors easily and effectively, while also keeping your device fully charged. This 11-port docking station is a top-class utility device.
Features:
- USB 3.1 Gen 1 Host Connector – Detachable
- 65W Power Delivery capabilities
- 1x HDMI 1.4 (10.2 Gbps – HDMI Alt Mode Required from host) port
- 1x HDMI 1.2 port

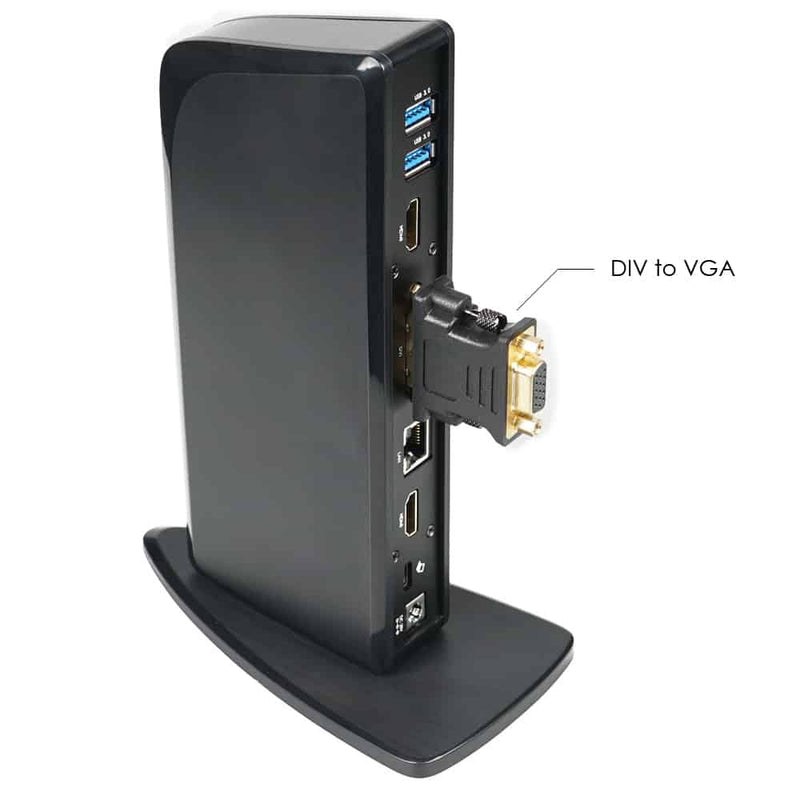

- 1x DVI-SL (Single Link) port – Dock comes with DVI to VGA adapter
- 1x USB Type-A (5 Gbps – Fast Charge)
- 3x USB Type-A ports
- 2x USB Type-C ports
- 1x RJ-45 (10/100/1000 Mbps) port
- 1x 4-pole TRRS 3.5mm Phono Jack (Audio In/Out Combo)
- Windows (7, 8, 8.1, 10), Mac OS X, and Chrome OS compatibility
- AC Adapter Included
Benefits:
- 4K Triple Display support: The USB-C 4K Triple Display Docking Station supports resolutions of up to 4K on three displays, allowing for seamless multitasking and improved productivity.
- 65W Power Delivery: The dock has a 65W power delivery that can charge laptops, tablets, and other devices quickly and efficiently.
- HDMI 1.4 and HDMI 1.2 ports: The dock has one HDMI 1.4 port and one HDMI 1.2 port, allowing for the connection of multiple displays.
- DVI-I SL port: The dock also has a DVI-I SL port, providing additional display connectivity options.
- USB 3.0 Fast Charge Type A port: The dock has a USB 3.0 Fast Charge Type A port, which can quickly charge devices such as smartphones and tablets.
- USB-A 3.0 ports: The dock has three USB-A 3.0 ports, providing additional connectivity options for peripherals such as keyboards, mice, and external hard drives.
- USB 3.0 Type C ports: The dock has two USB 3.0 Type C ports, allowing for the connection of newer devices such as laptops and smartphones.
- RJ-45 Gigabit Network port: The dock has an RJ-45 Gigabit Network port, allowing for a wired internet connection for stable and fast internet access.
- 4 pole TRRS Phono Jack: The dock has a 4 pole TRRS Phono Jack, providing audio in and out support.
Specifications:
| Warranty Information | Warranty | 2 Years |
| Features/Hardware | 4K Support | Yes |
| Displays Supported | 3 | |
| USB Ports | 6 | |
| Fast-Charge Port(s) | Yes | |
| Network | Yes | |
| SD Card Reader | No | |
| Audio | Yes | |
| Power Delivery | 65W | |
| Lock Slot | No | |
| Industry Standards | HDMI 1.2, 1.4 | |
| DVI-I SL | ||
| HDCP 1.4 | ||
| Power Delivery (PD 2.0) | ||
| Battery Charging (BC 1.2) | ||
| Chipset ID | DisplayLink - DL3900 | |
| Fresco Logic - FL5002 | ||
| Genesys Logic - GL3253 | ||
| Connector(s) | Host Bus Type | USB 3.1 Gen 1 (5Gbps) |
| Host Connector | USB Type-C | |
| Host Connector Cable | Detachable | |
| Connector Type(s) | 1x HDMI 1.4 (10.2Gbps - Alt-Mode Required from Host) | |
| 1x HDMI 1.2 (4.95 Gbps) | ||
| 1x DVI-I SL (4.95 Gbps) | ||
| 1x USB Type-A (5Gbps - Fast Charge) | ||
| 3x USB Type-A (5Gbps) | ||
| 2x USB Type-C (5Gbps) | ||
| 1x RJ-45 (10/100/1000Mbps) | ||
| 1x 4-Pole TRRS 3.5mm Phono Jack (Audio In/Out Combo) | ||
| Performance | Maximum Digital Resolutions | HDMI 1.4: 4K UHD (3840 x 2160 @ 30Hz, 8bpc) |

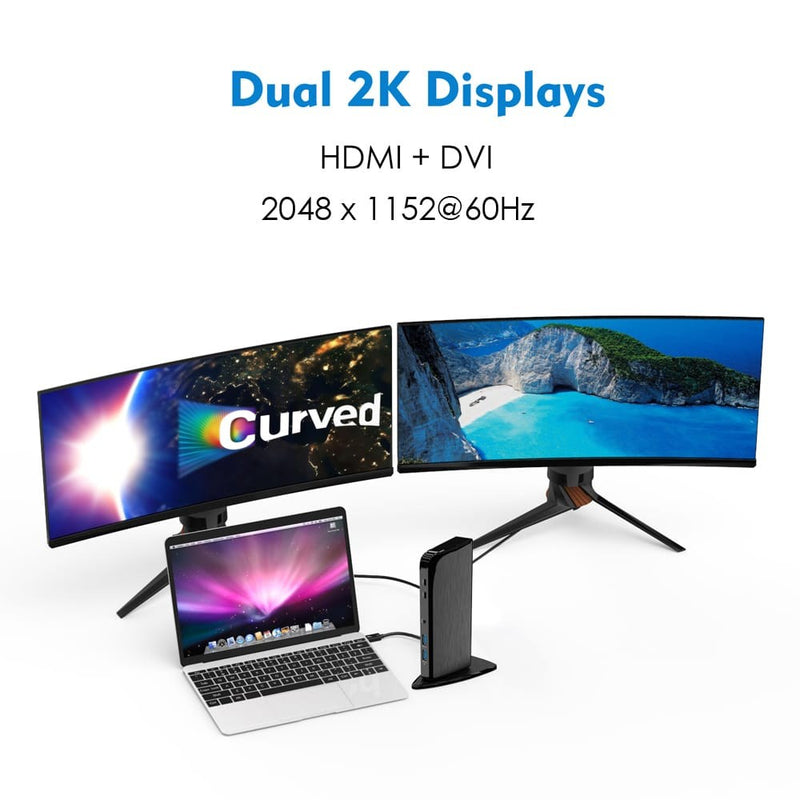

| HDMI 1.2/DVI-I SL: 2048x1152 @ 60Hz, 8bpc each | ||
| Maximum Analog Resolutions | DVI-I (Analog Mode): 1920 x 1200 @ 60Hz, 8bpc | |
| Audio Specification | 5.1-ch Surround (via HDMI) | |
| 2-ch Stereo (via 3.5mm Phono Jack) | ||
| Software | OS Compatibility | Windows 7, 8, 8.1, 10 |
| Mac OS X | ||
| Chrome OS | ||
| Power | Power Source | AC Adapter Included (100-240 VAC, 50/60Hz, 2A Max , CLASSⅡ) |
| Power Adapter Style | Brick | |
| Power Consumption | 100W | |
| Input Voltage | 20V DC @ 5A | |
| Power Delivery | 65W | |
| Physical Characteristics | Color | Black |
| Shell Material | ABS Plastic | |
| Host Cable Length | C-C Cable: 3.0 ft [0.91 m] | |
| C-A Cable: 3.0 ft [0.91 m] | ||
| Buttons/Switches | None | |
| LED Indicators | Power: Blue | |
| Network: Green | ||
| Power Cable Length | AC In: 4.58 ft [1.40 m] | |
| DC Out: 3.83 ft [1.17 m] | ||
| Product Height | 8.78 in [223 mm] | |
| Product Width | 1.02 in [26 mm] | |
| Product Length | 3.15 in [80 mm] | |
| Weight of Product | 11.92 oz [338 g] | |
| Environmental | Operating Temperature | 32°F to 104°F [0°C to 40°C] @ 10%-90% RH (Non-Condnesing) |
| Storage Temperature | 14°F to 158°F [-10°C to 70°C] @ 10%-90% RH (Non-Condnesing) | |
| Packaging Information | Package Type | Box |
| Package Height | 8.82 in [224 mm] | |
| Package Width | 9.67 in [245.5 mm] | |
| Package Length | 3.84 in [97.5 mm] | |
| Shipping (Package) Weight | 3.34 lbs [1.51 kg] | |
| What's in the Box | Included in Package | 1x USB-C Triple Display Universal Docking Station |
| 1x USB Type-C to Type-C Cable (E-Mark Chip) | ||
| 1x USB Type-C to Type-A Cable | ||
| 1x DVI to VGA Adapter | ||
| 1x Quick Start Guide | ||
| 1x 20V DC/5A 100W Power Adapter | ||
| 1x NEMA 5-15P to IEC 320 C13 Power Cord | ||
| Notes / Special Requirements | Notes | HDMI 4K port requires HDMI Alt-Mode Support from host via USB-C connection. When connecting to host with USB Type-A cable, USB-PD is unavailable and only 2 displays will function. |
| * Product appearance and specifications are subject to change without notice. | ||
| * Weights and measurements are approximate. | ||
Product Overview
Features:
4XEM USB-C 4K Triple Display Docking Station with 65W Power Delivery
Introducing the ultimate productivity tool for your workspace: the USB-C 4K Triple Display Docking Station. With 65W Power Delivery, you'll never have to worry about running out of power while you work. The docking station features 1 HDMI 1.4 port, 1 HDMI 1.2 port, 1 DVI-I SL port, 1 USB 3.0 Fast Charge Type A port, 3 USB-A 3.0 ports, 2 USB 3.0 Type C ports, 1 RJ-45 Gigabit Network port, and 1 4 pole TRRS Phono Jack for audio in and out. Connect multiple displays to increase your productivity and improve your workflow. Stay connected with fast and reliable Gigabit Networking and take advantage of lightning-fast data transfer speeds with USB 3.0. Optimize your audio with the 4 pole TRRS Phono Jack for audio in and out. This Docking Station is perfect for professionals, gamers, and anyone looking to streamline their workflow and increase their productivity.
Problem It Solves: Display up to 3 different monitors easily and effectively, while also keeping your device fully charged. This 11-port docking station is a top-class utility device.
Features:
- USB 3.1 Gen 1 Host Connector – Detachable
- 65W Power Delivery capabilities
- 1x HDMI 1.4 (10.2 Gbps – HDMI Alt Mode Required from host) port
- 1x HDMI 1.2 port
- 1x DVI-SL (Single Link) port – Dock comes with DVI to VGA adapter
- 1x USB Type-A (5 Gbps – Fast Charge)
- 3x USB Type-A ports
- 2x USB Type-C ports
- 1x RJ-45 (10/100/1000 Mbps) port
- 1x 4-pole TRRS 3.5mm Phono Jack (Audio In/Out Combo)
- Windows (7, 8, 8.1, 10), Mac OS X, and Chrome OS compatibility
- AC Adapter Included
Benefits:
- 4K Triple Display support: The USB-C 4K Triple Display Docking Station supports resolutions of up to 4K on three displays, allowing for seamless multitasking and improved productivity.
- 65W Power Delivery: The dock has a 65W power delivery that can charge laptops, tablets, and other devices quickly and efficiently.
- HDMI 1.4 and HDMI 1.2 ports: The dock has one HDMI 1.4 port and one HDMI 1.2 port, allowing for the connection of multiple displays.
- DVI-I SL port: The dock also has a DVI-I SL port, providing additional display connectivity options.
- USB 3.0 Fast Charge Type A port: The dock has a USB 3.0 Fast Charge Type A port, which can quickly charge devices such as smartphones and tablets.
- USB-A 3.0 ports: The dock has three USB-A 3.0 ports, providing additional connectivity options for peripherals such as keyboards, mice, and external hard drives.
- USB 3.0 Type C ports: The dock has two USB 3.0 Type C ports, allowing for the connection of newer devices such as laptops and smartphones.
- RJ-45 Gigabit Network port: The dock has an RJ-45 Gigabit Network port, allowing for a wired internet connection for stable and fast internet access.
- 4 pole TRRS Phono Jack: The dock has a 4 pole TRRS Phono Jack, providing audio in and out support.
Specifications:
| Warranty Information | Warranty | 2 Years |
| Features/Hardware | 4K Support | Yes |
| Displays Supported | 3 | |
| USB Ports | 6 | |
| Fast-Charge Port(s) | Yes | |
| Network | Yes | |
| SD Card Reader | No | |
| Audio | Yes | |
| Power Delivery | 65W | |
| Lock Slot | No | |
| Industry Standards | HDMI 1.2, 1.4 | |
| DVI-I SL | ||
| HDCP 1.4 | ||
| Power Delivery (PD 2.0) | ||
| Battery Charging (BC 1.2) | ||
| Chipset ID | DisplayLink - DL3900 | |
| Fresco Logic - FL5002 | ||
| Genesys Logic - GL3253 | ||
| Connector(s) | Host Bus Type | USB 3.1 Gen 1 (5Gbps) |
| Host Connector | USB Type-C | |
| Host Connector Cable | Detachable | |
| Connector Type(s) | 1x HDMI 1.4 (10.2Gbps - Alt-Mode Required from Host) | |
| 1x HDMI 1.2 (4.95 Gbps) | ||
| 1x DVI-I SL (4.95 Gbps) | ||
| 1x USB Type-A (5Gbps - Fast Charge) | ||
| 3x USB Type-A (5Gbps) | ||
| 2x USB Type-C (5Gbps) | ||
| 1x RJ-45 (10/100/1000Mbps) | ||
| 1x 4-Pole TRRS 3.5mm Phono Jack (Audio In/Out Combo) | ||
| Performance | Maximum Digital Resolutions | HDMI 1.4: 4K UHD (3840 x 2160 @ 30Hz, 8bpc) |
| HDMI 1.2/DVI-I SL: 2048x1152 @ 60Hz, 8bpc each | ||
| Maximum Analog Resolutions | DVI-I (Analog Mode): 1920 x 1200 @ 60Hz, 8bpc | |
| Audio Specification | 5.1-ch Surround (via HDMI) | |
| 2-ch Stereo (via 3.5mm Phono Jack) | ||
| Software | OS Compatibility | Windows 7, 8, 8.1, 10 |
| Mac OS X | ||
| Chrome OS | ||
| Power | Power Source | AC Adapter Included (100-240 VAC, 50/60Hz, 2A Max , CLASSⅡ) |
| Power Adapter Style | Brick | |
| Power Consumption | 100W | |
| Input Voltage | 20V DC @ 5A | |
| Power Delivery | 65W | |
| Physical Characteristics | Color | Black |
| Shell Material | ABS Plastic | |
| Host Cable Length | C-C Cable: 3.0 ft [0.91 m] | |
| C-A Cable: 3.0 ft [0.91 m] | ||
| Buttons/Switches | None | |
| LED Indicators | Power: Blue | |
| Network: Green | ||
| Power Cable Length | AC In: 4.58 ft [1.40 m] | |
| DC Out: 3.83 ft [1.17 m] | ||
| Product Height | 8.78 in [223 mm] | |
| Product Width | 1.02 in [26 mm] | |
| Product Length | 3.15 in [80 mm] | |
| Weight of Product | 11.92 oz [338 g] | |
| Environmental | Operating Temperature | 32°F to 104°F [0°C to 40°C] @ 10%-90% RH (Non-Condnesing) |
| Storage Temperature | 14°F to 158°F [-10°C to 70°C] @ 10%-90% RH (Non-Condnesing) | |
| Packaging Information | Package Type | Box |
| Package Height | 8.82 in [224 mm] | |
| Package Width | 9.67 in [245.5 mm] | |
| Package Length | 3.84 in [97.5 mm] | |
| Shipping (Package) Weight | 3.34 lbs [1.51 kg] | |
| What's in the Box | Included in Package | 1x USB-C Triple Display Universal Docking Station |
| 1x USB Type-C to Type-C Cable (E-Mark Chip) | ||
| 1x USB Type-C to Type-A Cable | ||
| 1x DVI to VGA Adapter | ||
| 1x Quick Start Guide | ||
| 1x 20V DC/5A 100W Power Adapter | ||
| 1x NEMA 5-15P to IEC 320 C13 Power Cord | ||
| Notes / Special Requirements | Notes | HDMI 4K port requires HDMI Alt-Mode Support from host via USB-C connection. When connecting to host with USB Type-A cable, USB-PD is unavailable and only 2 displays will function. |
| * Product appearance and specifications are subject to change without notice. | ||
| * Weights and measurements are approximate. | ||
