4XEM USB-C to DisplayPort Cable - 3FT

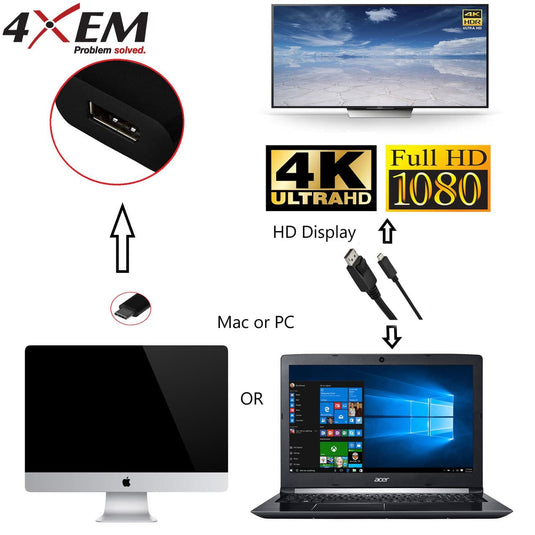

Easily connect your USB Type-C device to an HDTV, monitor or projector with 4XEM's 3ft USB Type-C to DisplayPort Male Adapter (4XUSBCDISPCBL3). USB Type-C signals are converted to support a maximum digital resolution of 2160p 4K UHD (3840x2160) @ 60Hz refresh rate as well as up to 7.1 channels of surround sound audio. A quality and durable design ensures long life enjoyment.
Special Note: Your USB-C port must support DP Alt Mode or Thunderbolt 3 in order to work with this adapter.
Problem it solves: Easily convert a USB Type-C signal to DisplayPort and present on the big screen. Plug and play!
Backed by our 4XEM unmatched 2-year Warranty!
4XEM gear is respected industry-wide for its high performance, premium quality and durability.
Features:
- USB-C 3.1 Type-C male compatible with Thunderbolt 3 ports
- Plug and play without the need for drivers or software
- Use with all Mac or PC with USB-c
- Transmits video and audio signal over DP
- Resolution support over DP up to UHD 4K @60Hz
- Supports DisplayPort 1.2 and former standards
- 3 ft length
Specifications:
| Warranty Information | ||
| Warranty | 2 years | |
| Hardware | ||
| Active or Passive cable | Active | |
| Chip ID | Unavailable | |
| Direction | Unidirectional | |
| Video Source | USB-C | |
| Display | DisplayPort | |
| Cable Jacket Type | PVC - Polyvinyl Chloride | |
| Cable Shield Type | Aluminum-Mylar Foil with Braid | |
| Connector Plating | Gold | |
| Bandwidth | HBR2 - 21.60Gbps/17.28Gbps (DP1.2) | |
| Connector(s) | ||

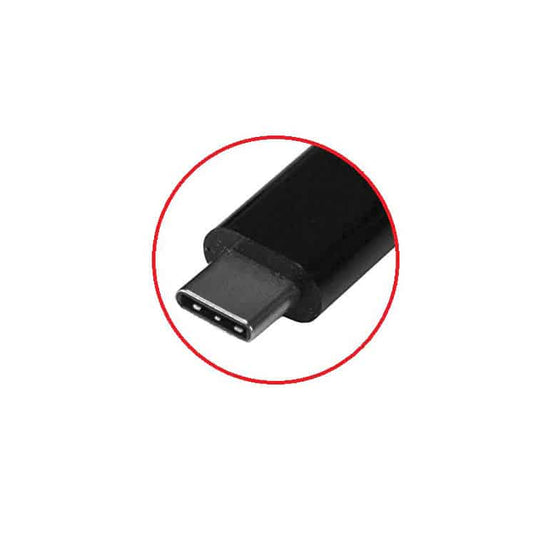

| Connector A | 1 - USB Type-C (24 pin) DP Alt Mode Male | |
| Connector B | 1 - DisplayPort (20 pin) Male | |
| Physical Characteristics | ||
| Cable Length | 3 ft [0.9 m] | |
| Cable OD | 0.185 in [4.7 mm] | |
| Color | Black | |
| Weight of Product | 1.3 oz [38 g] | |
| Wire Gauge | 28 AWG | |
| Packaging Information | ||
| Package Height | 9.65 in [245 mm] | |
| Package Length | 0.51 in [13 mm] | |
| Package Width | 5.08 in [129 mm] | |
| Shipping (Package) Weight | 1.7 oz [48 g] | |
| What's in the Box | ||
| Included in Package | 1 - 3 ft USB-C to DisplayPort Cable - M/M | |
| Notes | System Requirements | Your USB-C port must support DP Alt Mode or Thunderbolt 3 in order to work with this adapter |
| * Product appearance and specifications are subject to change without notice. | ||
| * Same day shipping is only available for orders shipping within the United States. | ||
